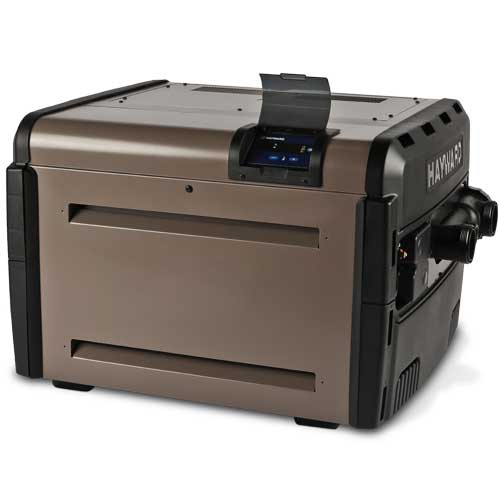

The Universal H-Series is an energy efficient, high performance, installation adaptable commitment to the pool service professional.

• Standard cupro nickel heat exchanger
• Excellent salt water and chemical corrosion resistance
• Exclusive "Totally Managed" cupro nickel heat exchanger water flow
• Same water velocity through all tubes for faster heating
• Patented header by-pass design
• Up to 18 percent savings by reducing pump run-time
• 2in x 2 1/2in CPVC union plumbing connections
• Common union for installation or service, adapts to larger plumbing recommended for greater efficiencies
• Low NOx emissions - meets clean air quality standards

Active Defrost	No
Application	New Construction, Renovation, Aftermarket
Boost Mode	No
Brand	Hayward
Channel	Expert Line
Circuit Amps	5.5000
Cooling Capability	No
Fuel Type	Natural Gas
GTIN	610377047043
Heating Capacity (BTU/hr)	150000
Hertz	60 Hz
Kilowatts	44 kW
Labor Warranty	1-year
Low Ambient Operation	No
Master Carton Qty	1
Maximum Fuse Breaker Size (Amps)	15.0000
Pallet Qty	1
Parts Warranty	3-year
Phase Heaters	1.0000
Pool Type	In Ground
Product Dimensions	24 " x 19 " x 29.5 "
Product Height	24 in
Product Length	29.5 in
Product Weight	135 lb
Product Width	19 in
Rear Clearance - Heaters	6 in
Refrigerant	Yes
Series Heaters	Universal HSeries
Shipping Dimensions	29.3 " x 32 " x 27.5 "
Shipping Height	29.3 in
Shipping Length	27.5 in
Shipping Weight	133 lb
Shipping Width	32 in
Side Clearance - Heaters	12 in
Silent Mode	No
